UFO High Bay LED Light Bulbs , Aluminum Commercial High Bay LED Lights

Product Categories
JINLIN SEMICONDUCTOR LIGHTING LIMTED
Contact Now

UFO High Bay LED Light Bulbs , Aluminum Commercial High Bay LED Lights

Brand Name : JINLIN

Model Number : JL-UFO-150W

Certification : CE,RoHS

Place of Origin : Shenzhen China

MOQ : 1pcs

Payment Terms : T/T

Supply Ability : 10,000pcs/month

Delivery Time : sample order 3-5days

Packaging Details : 1pcs/carton

Wattage : 150W

Light source : LED

Input voltage : AC85-265V 50/60Hz

light Efficiency : 140lm/w

Total Lumen : 21000lm

Beam angle : 60°/90°/120°

Lamp Body Material : Aluminum

Color temperature : 2500-6500k

LED Type : SMD3030

CRI : >80

Size : Φ340*180mm

PF : >0.9

IP Rating : IP65

working temperature : －20℃～＋50℃

Warranty : 3years

Usage : WAREHOUSE, Indoor/Outdoor

Key words : industrial highbay, ufo highbay light, LED highbay

Dimmable : 0-10v dimmming

Contact Now

150W UFO LED High Bay light IP65 industrial highbay light 140lm/w high lumen


Product details

Model No. JL-UFO-100W JL-UFO-150W JL-UFO-200W JL-UFO-240W
Input voltage AC85-265V 50/60Hz AC85-265V 50/60Hz AC85-265V 50/60Hz AC85-265V 50/60Hz
Power 100W 150W 200W 240W
LED Type SMD3030 SMD3030 SMD3030 SMD3030
IP Rating IP65 IP65 IP65 IP65
Efficiency 140lm/w 140lm/w 140lm/w 140lm/w
Total Lumen 14000lm±10% 21000lm±10% 28000lm±10% 36000lm±10%
Color temperature 2500~6500K 2500~6500K 2500~6500K 2500~6500K
CRI >70 >70 >70 >70
PF >0.95 >0.95 >0.95 >0.95
Size Φ290*171mm Φ340*180mm Φ400*193mm Φ400*204mm
Beam angle 60°/90°/120° 60°/90°/120° 60°/90°/120° 60°/90°/120°
Working temperature －20℃～＋50℃ －20℃～＋50℃ －20℃～＋50℃ －20℃～＋50℃
Material Aluminum Aluminum Aluminum Aluminum
Net weight 2.4kg 3.2kg 3.9kg 4.8kg
Packing 1pcs/carton 1pcs/carton 1pcs/carton 1pcs/carton
Install hook or bracket holders hook or bracket holders hook or bracket holders hook or bracket holders
Warranty 3 years 3 years 3 years 3 years


UFO High Bay LED Light Bulbs , Aluminum Commercial High Bay LED Lights

UFO High Bay LED Light Bulbs , Aluminum Commercial High Bay LED Lights

UFO High Bay LED Light Bulbs , Aluminum Commercial High Bay LED Lights

UFO High Bay LED Light Bulbs , Aluminum Commercial High Bay LED Lights

Product features:

1. High brightnes LED chip: 3030 SMD.

2. High Lumen efficieny >130lm/W

3. Different beam angle 60°/90°/120° available

4. Long lifespan 50,000hrs

5, Three installation method : bracket or hook mounting optional

6, 5 years warranty

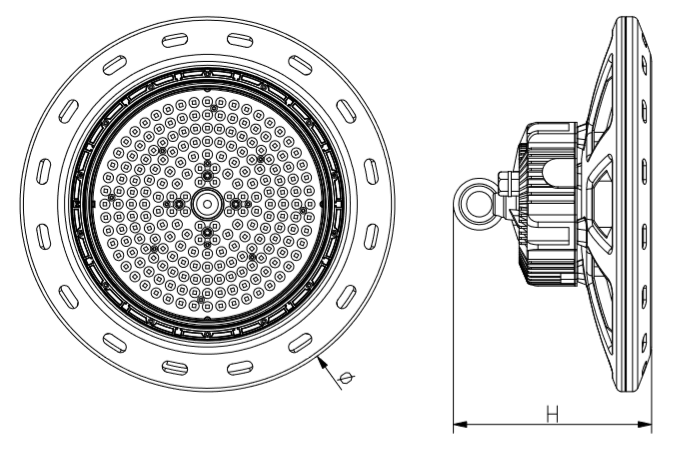

Product Size

UFO High Bay LED Light Bulbs , Aluminum Commercial High Bay LED Lights

Item NO. JL-UFO-100W JL-UFO-150W JL-UFO-200W JL-UFO-240W
Size 290*171mm 340*180mm 400*193mm 400*204mm

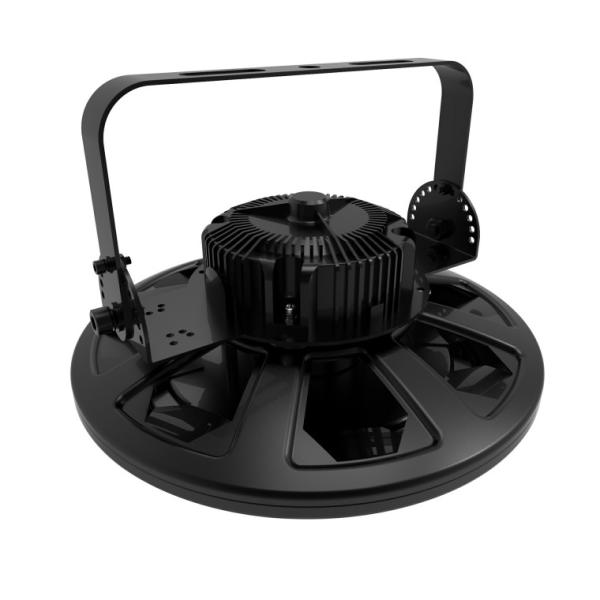

Installation

UFO High Bay LED Light Bulbs , Aluminum Commercial High Bay LED Lights

Packaging

UFO High Bay LED Light Bulbs , Aluminum Commercial High Bay LED Lights

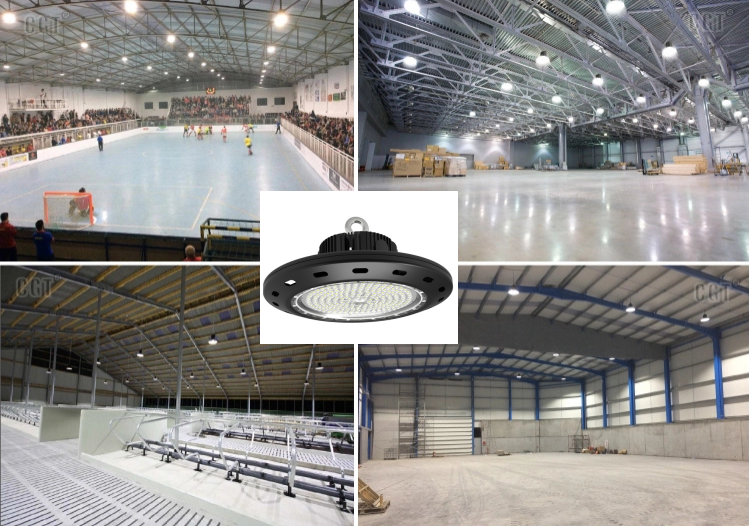

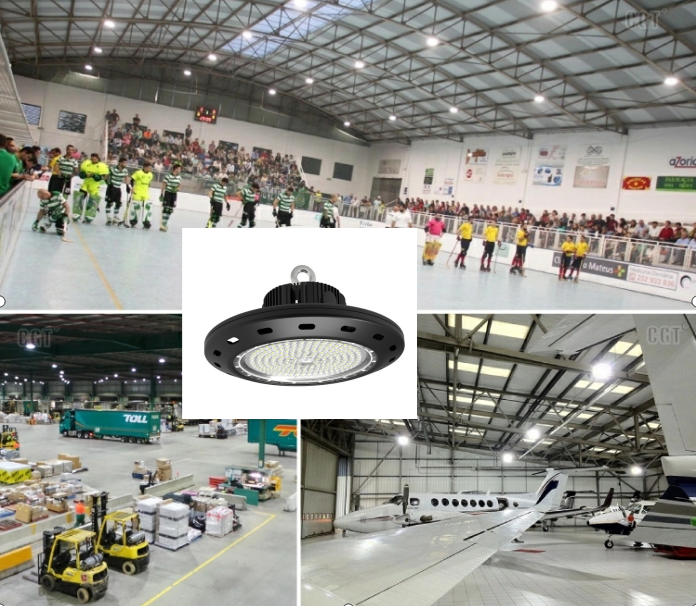

Application

UFO High Bay LED Light Bulbs , Aluminum Commercial High Bay LED Lights

UFO High Bay LED Light Bulbs , Aluminum Commercial High Bay LED Lights




Company Information

About us:

Shenzhen Jinlin Semiconductor Lighting Limited founded in 2009, located in Shenzhen where is the base of LED lighting industry in China. a high-tech enterprise with Research, , Manufacture, Marketing and Service. We have an R&D department with excellent engineers who research and develop the LED light and LED driver power. We are one of the pioneer of indoor -lighting exploration , focus on improving LED indoor lighting technology. Leading the development trend of LED light . We are professional ,because of focusing the target, Our task is that create low-carbon and energy-saving LED lighting products, we'll be keep exploring, improving and perfecting, Specializing in LED Tube light, Bulb light, Corn light, Flood Light, UFO Highbay etc. Products are RoHS CE PSE FCC TUV UL approved. LED down light, LED bulb and LED tube have got some patents of appearance and new technology from nation.
UFO High Bay LED Light Bulbs , Aluminum Commercial High Bay LED Lights


Our services

  • Your inquiry will be promptly replied in 12 hours
  • With high quality, all products are 48 hrs aging test
  • OEM&ODM available.any your customized lightings we can help you to design and put into product
  • 3 years warranty
  • Any defective products within warranty will get maintenance or replacement unconditionally
